A 5 K superheat error on an R407F system is enough to cut the COP by 15 to 25%, according to Copeland technical bulletins (Copeland Application Engineering, 2016). It is the most common problem on R404A to R407F conversions in commercial refrigeration. Yet the fix takes under 30 minutes once you know where to look. This article is your field reference: what to watch, settings by application, troubleshooting and commissioning.
Key Takeaways
Which indicators should you watch on an R407F system?
Five measurements are enough to assess the health of an R407F circuit in under ten minutes. Per the EN 12900 specifications Copeland uses for ZF scroll compressors, the nominal reference conditions are: evaporation at -10°C, condensing at 45°C, 10 K superheat and zero subcooling (Copeland TI Scroll ZF). Any deviation from these benchmarks signals a problem.
From field feedback, most technicians focus on pressures. It is a logical reflex, but not enough on its own. Get into the habit of recording these five values at every visit: suction pressure, discharge pressure, discharge temperature, superheat and subcooling. Why these five? Because they cover both sides of the circuit, the compressor and both heat exchangers.
| Indicator | Healthy (medium temp) | Healthy (low temp) | Alert threshold |
|---|---|---|---|
| Superheat (at dew point) | 6 to 8 K | 8 to 12 K | > 15 K or < 4 K |
| Subcooling (at bubble point) | 4 to 6 K | 4 to 6 K | < 2 K or > 10 K |
| Discharge temperature | 70 to 95°C | 90 to 120°C | > 125°C |
| Suction pressure (evap. -10°C) | 3.5 to 4.0 bar(g) | 1.0 to 1.5 bar(g) (-30°C) | > 0.5 bar off target |
| Estimated COP | 2.5 to 3.2 | 1.2 to 1.8 | > 20% drop vs commissioning |
An often-missed point: R407F is zeotropic with a glide of about 6 to 6.4 K (National Refrigerants). If you use the bubble-point column to calculate superheat, your value will read 6 K too high. The result: you close the expansion valve the wrong way. Always use the dew point at the measured suction pressure. For subcooling it is the reverse: take the bubble point at the condensing pressure. For full detail on glide and pressure-temperature tables, see our complete R407F technical guide.
Which settings should you use by application type?
Field trials run by Honeywell on Performax LT show R407F systems reaching 5% energy savings under controlled conditions and up to 15% on real operating bills (Honeywell/Verco case study). But those gains assume settings matched to each installation. A display case and a low-temperature cold room do not have the same needs.
From field feedback, the most common mistake is applying the same superheat target to every application. A medium-temperature supermarket case runs well with 6 K of superheat. The same setting on a -35°C chest freezer will cause liquid floodback to the compressor. The reason is simple: at low evaporating temperatures, mass flow drops and gas velocity in the suction line falls. You need more superheat to be sure the refrigerant is fully vaporized.
| Parameter | Medium temp (display case, 0 to +5°C) | Low temp (cold room, -18 to -25°C) | Freezing (blast tunnel, -30 to -40°C) |
|---|---|---|---|
| Evaporating temperature | -8 to -12°C | -28 to -33°C | -38 to -45°C |
| Target superheat (dew point) | 6 to 8 K | 8 to 12 K | 10 to 15 K |
| Target subcooling (bubble point) | 4 to 6 K | 4 to 6 K | 5 to 8 K |
| Typical discharge temp | 70 to 90°C | 95 to 115°C | 110 to 130°C * |
| Liquid injection required? | No | Compressor-dependent | Yes (LIV) |
A practical tip: after each expansion valve adjustment, wait 15 to 20 minutes of stable running before measuring again. Corrections made too fast trigger hunting, where the valve oscillates between too much and too little flow. It is frustrating when you are pressed for time, but it is the only way to get a reliable setting.
How does R407F COP vary with ambient temperature?

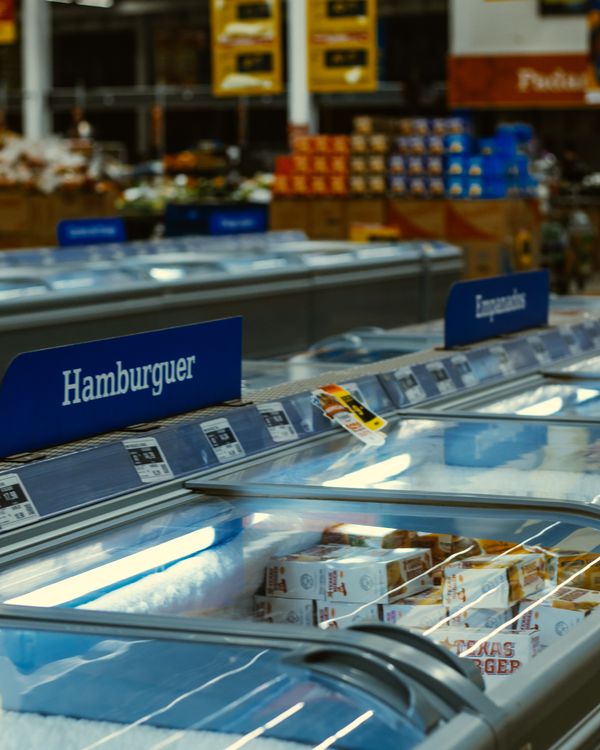

The Honeywell/Verco field study of 124 freezer cases in a UK supermarket showed R407F enables more efficient thermostatic cycling, whereas R404A forced continuous running on the same cases (Honeywell/Verco). This behaviour comes from R407F’s better COP, which reaches the set point faster and can switch off between cycles.
A refrigeration system’s efficiency depends directly on the gap between evaporating and condensing temperature. The smaller that gap, the higher the COP. In winter, when outdoor air drops to 5°C, the condenser can run at 25°C instead of 45°C in summer. The gain is considerable. That is why the floating head pressure strategy pays off so well.
What does that mean in practice? A Mediterranean-region supermarket whose condenser runs at 45°C in July has a COP of 2.05 in medium-temperature refrigeration. The same system in January, condensing at 25°C, reaches a COP of 3.6. That is 75% more efficiency. Ignoring this variation leaves money on the table from September to April.
What are the most common performance problems?
R407F runs at higher discharge temperatures than R404A, which is the most notable operational difference after conversion (National Refrigerants). POE (polyolester) oils start to lose their lubricating properties above 149°C (ACHR News, 2023). When a technician overlooks this, failures follow.
| Symptom | Probable cause | Corrective action |
|---|---|---|
| Discharge temp > 125°C | Excess superheat, fouled condenser, undercharge | Check superheat (dew), clean condenser, verify charge |
| COP down > 20% | Insufficient subcooling, partial leak, iced evaporator | Measure subcooling (bubble), leak search, defrost |
| Reduced cooling capacity | Undersized expansion valve, clogged filter drier | Check delta T across drier (< 1 K normal), replace if blocked |
| Poor oil return | Gas velocity too low in suction line, missing oil trap | Check pipe diameter, add an oil trap if needed |
| Unstable superheat (hunting) | TXV miscalibrated for the zeotropic glide | Recalibrate with R407F dew table, or switch to an electronic valve |
| Abnormal compressor noise | Liquid floodback (superheat too low), low oil level | Raise superheat by 2 K, check the oil sight glass |
A problem manuals rarely mention: fractionation. Because R407F is zeotropic, a vapour-phase leak changes the composition of the blend left in the circuit. You preferentially lose R-32, the most volatile component. The result? The blend’s effective properties no longer match the standard tables. After any significant leak, recover the entire charge and recharge with fresh R407F in the liquid phase. Never top up a zeotropic blend with vapour alone.
How do you commission an R407F system correctly?
EN 378-2 requires a tightness test and a check of safety devices before any refrigeration circuit is started (EN 378-2:2016+A1:2020). Beyond that legal duty, rigorous commissioning sets the reference values used at every later visit. Without those baselines, any future diagnosis is navigating without a map.
Here is the checklist we recommend for any commercial R407F commissioning. Print it, take it to site:
| Step | Action | Value to record / criterion |
|---|---|---|
| 1 | Tightness test under OFN (oxygen-free nitrogen) | Hold 24 h with no pressure drop (< 0.1 bar) |
| 2 | Evacuation (vacuum) | < 500 microns (0.67 mbar), hold 30 min |
| 3 | Charge in liquid phase only | Charge weight per nameplate (+/- 2%) |
| 4 | Start and stabilize (20 min) | Check rotation direction, vibration, noise |
| 5 | Record HP / LP pressures | Compare to the targets in the parameter table above |
| 6 | Measure superheat (dew point) | Medium temp: 6-8 K, low temp: 8-12 K |
| 7 | Measure subcooling (bubble point) | 4 to 6 K (all applications) |
| 8 | Measure discharge temperature | < 120°C without injection, check LIV if > 110°C |
| 9 | Check oil level at sight glass | Between 1/4 and 3/4 of sight glass after 30 min running |
| 10 | Log all values in the system record | These become the reference for all future diagnostics |
Step 10 is the most important and the most often skipped. A technician returning two years later has no way to know whether the COP has dropped 20% without the initial values. Take five minutes to record everything. Your colleagues will thank you. For the detailed R404A to R407F conversion procedure (recovery, oil change, charging), see the complete R407F technical guide.
How do you cut energy use over a full year?
Floating head pressure is the most cost-effective optimization lever for any R407F system in commercial refrigeration. Per Copeland, this strategy delivers a 15 to 20% efficiency gain on compressors, and savings can reach 33% in steady-state operation (Copeland E360). In cold climates, with average ambient below 0°C, savings climb to 50-60%.
The principle is simple. Most central systems are sized for summer heat peaks. They hold a fixed condensing pressure equivalent to about 45°C, even in January. That is like driving in first gear on the motorway. Letting head pressure float with ambient temperature frees up considerable power.
One caution: dropping the condensing pressure too low stops the thermostatic expansion valve from working properly. With a TXV, the minimum condensing pressure usually sits around 14 to 16 bar (25 to 30°C condensing). An electronic valve (EEV) lets you go lower, around 10 to 12 bar, and capture more savings. It is one of the best investments to consider during a conversion. For the financial side of conversion and the ROI calculation, see our R407F carbon footprint and ROI analysis.
When should you consider replacing R407F with another refrigerant?
R407F has a GWP of 1,825 (IPCC AR4), which puts it above the 150 threshold set by Annex IV of Regulation (EU) 2024/573 for certain new equipment categories from 2027 (F-Gas regulation guide). For existing systems, R407F stays fully legal for servicing and recharging. But for how long?
The answer depends on your situation. If your installation has under 5 years of remaining life, optimize it with R407F. The gains are immediate, the cost is low. If you are planning a system replacement within 3 to 5 years, move toward low-GWP solutions now: transcritical CO2 for large stores, R454C or R455A for self-contained cases. For a full analysis of the alternatives, see our low-GWP refrigerant guide.
If you do not know which refrigerant your current system contains, start by identifying your system’s refrigerant type. That is the first step before any decision.
Frequently Asked Questions
Why does my R407F superheat always seem too high?
The problem is probably the PT table you are using. R407F has a glide of 6 to 6.4 K (National Refrigerants). If you read the bubble-point column instead of the dew point to calculate suction superheat, your value will be 6 K too high automatically. Check that your gauge or app is set to dew-point mode for R407F.
Can you top up an R407F charge after a leak?
No, except for a minor leak (under 5% of total charge). R407F is a zeotropic blend: during a vapour-phase leak, the more volatile R-32 escapes first. The remaining blend no longer has the right composition. After any significant leak, recover the entire charge and recharge with fresh R407F in the liquid phase only.
What is the maximum discharge temperature on an R407F system?
The safety threshold is 125°C with a liquid-injection valve active, and a safety thermostat should cut out at 130°C (Copeland Application Engineering). Above 149°C, POE oil starts to degrade (ACHR News). In medium temperature, target 70 to 90°C. In low temperature, 95 to 115°C is normal, but any value above 120°C needs investigation.
Does R407F need an oil change compared with R404A?
In most cases, no. If your R404A system already runs on POE (polyolester) oil, it stays compatible with R407F. If the system still uses mineral or alkylbenzene oil, switching to POE is mandatory. Note: POE oil is hygroscopic and absorbs moisture very fast. Never leave a container open more than a few minutes.
How much energy does R407F really save?
The Honeywell/Verco trials on 124 supermarket freezer cases measured 5% savings in the test chamber and up to 15% on real operating bills. These gains come from the better COP and the more efficient thermostatic cycling compared with R404A, which forced continuous running on the same equipment.
Do you need certification to handle R407F?
Yes. R407F is an HFC blend covered by the EU F-Gas Regulation. Any handling (charging, recovery, transfer) requires valid F-Gas personnel certification under Regulation (EU) 2015/2067, by category according to the task. Companies must also keep records of refrigerant movements. See our F-Gas regulation guide.
A high-performing R407F system is a well-set one
R407F offers an excellent compromise between energy performance and regulatory compliance for commercial refrigeration. But its potential only shows with settings matched to each application. Measure superheat at the dew point, adapt your targets to the temperature regime, and log the commissioning values for every installation.
To go further, find the full properties and conversion procedure in the complete R407F technical guide, and the return-on-investment analysis in our article on carbon footprint and ROI. To order R407F for your work, see our R407F range in cylinders and drums.
Disclaimer: the COP, pressure and temperature values in this article are orders of magnitude based on manufacturer nominal conditions and field feedback. Real performance varies with the compressor, circuit condition, refrigerant charge and ambient conditions. Always consult your equipment manufacturer’s technical documentation for exact specifications. Regulatory information is current as of June 2026; check the official texts on EUR-Lex for any contractual application.
